Water Box and Waste Box: The Support Equipment Behind an Off-Grid Jobsite

A water box is bulk fresh-water supply parked beside a trailer, and a waste box is bulk holding for what goes down the drain. You need one or both when the site has no hookup, when the pump truck is a long drive away, when headcount outruns the trailer's onboard tanks, or when shower trailers are on the pad. They do not change how the trailer works for the crew inside it. They change how many days the trailer can run between service visits, and that number is what a superintendent is actually buying.

This post is the equipment-level explainer: what each box does, how it changes the service interval for specific models, how it reads on a quote, where it has to sit so a truck can reach it, and how it survives January. For the full off-grid picture, including generators and the service loop across a whole compound, see our guide to remote construction site facilities with no water, sewer, or power.

What a water box does, and what a waste box does

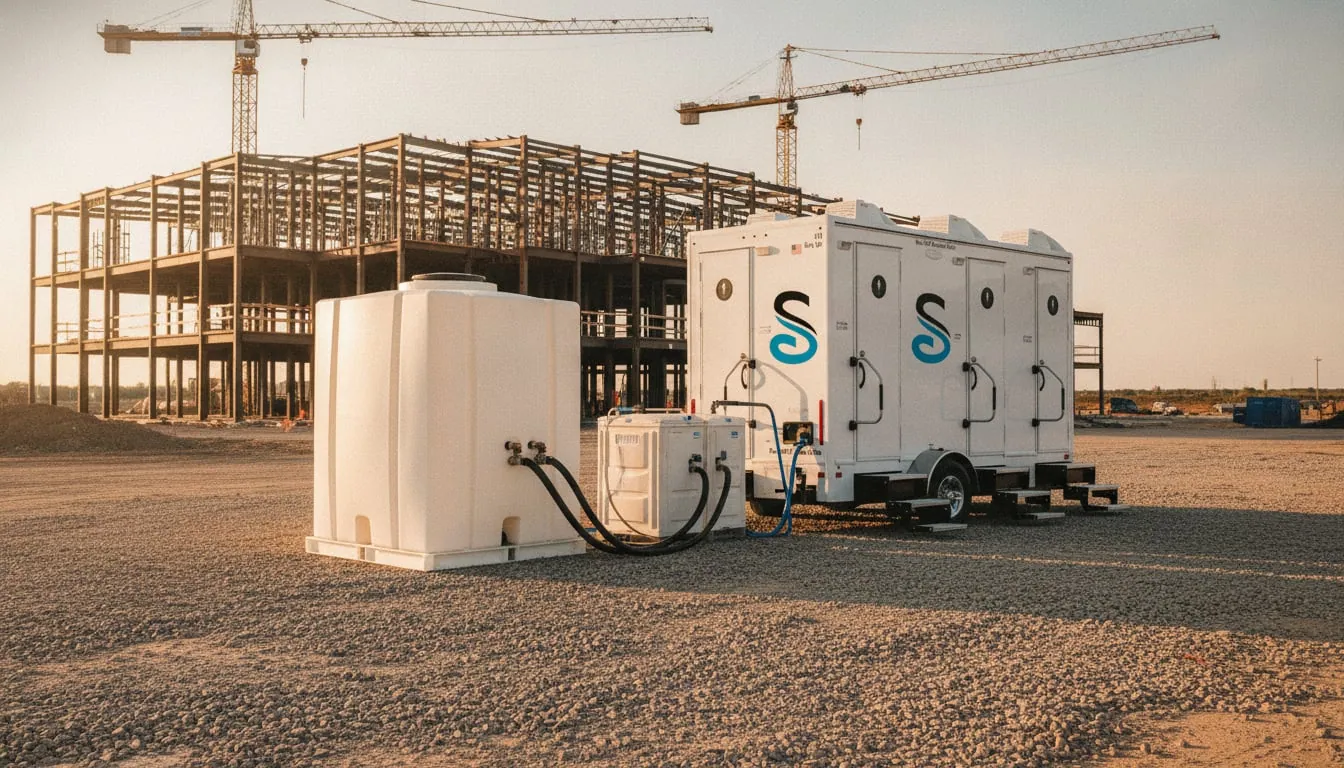

The water box stands in for a hydrant connection. It holds potable water outside the trailer and feeds the trailer's supply line, so the onboard fresh tank stays topped up without anyone dragging a hose from a building that does not exist yet. The waste box does the opposite job. It takes drain water and waste beyond what the trailer's own tank can hold, so a full onboard tank is not the thing that ends the day.

They are support equipment, not accessories, and they get sized to the unit they serve. Stahla also runs a combined Mobile Water and Waste Box: one insulated, heated unit that carries 270 gallons of fresh water and 330 gallons of waste capacity, with a single service point so the truck can pump and fill in one stop. It was built for office trailers with a bathroom and kitchenette, which is where most compounds first discover they have no water or sewer.

On restroom and shower trailers, the boxes are specified on the quote against the model, the headcount, and the distance to service. We do not publish a single standard capacity for them because the right size depends on those three things. Across the industry, stand-alone waste holding tank rental units are commonly offered around 250, 300, and 500 gallons, and towable water tanks around 500 gallons, with larger sites linking units together. Treat those as typical ranges, not our fleet list.

The onboard tanks set the starting interval

Every box calculation starts with the trailer's own tanks, because those are fixed by model. The ratio between fresh and waste tells you which side runs out first, and that decides whether you need a water box, a waste box, or both. The column on the right is the ceiling: how many times the fresh tank could be emptied before the waste tank fills, if every gallon of fresh water ends up in the waste tank.

Model	Fresh (onboard)	Waste (onboard)	Fresh fills per pump-out (ceiling)
2 Stall	125 gal	250 gal	2.0
4 Stall 4 Door	200 gal	440 gal	2.2
8 Stall 8 Door	300 gal	970 gal	3.2
10 Stall 7 Door	400 gal (two 200 gal)	970 gal	2.4
3 Stall ADA	105 gal	300 gal	2.9
3 Stall Shower + Restroom Combo	300 gal	652 gal	2.2
8 Station 2 Door Shower	200 gal	970 gal	about 5
8 Station 8 Door Shower	300 gal	970 gal	about 3.2

Read the restroom rows and the shower rows differently. In a restroom trailer, the waste tank also takes on volume that never came out of the fresh tank, so the real number of fills per pump-out is lower than the ceiling, and waste capacity is usually what sets the interval at high headcount. In a shower trailer, nearly every gallon that goes in comes back out the drain, so the ceiling is close to what actually happens. That is why the 8 Station 2 Door Shower, at 200 fresh against 970 waste, runs out of fresh water about five times before it needs a pump-out. The 8 Station 8 Door Shower, at 300 against the same 970, runs out about 3.2 times.

When a site needs a box, and which one

Four conditions push a site toward support equipment. Any one of them can be enough, and remote jobs usually have all four. The decision is less about the trailer and more about the gap between how fast a tank empties or fills and how often a truck can get there.

Site condition	What runs out first	Box to spec
No water connection within hose reach, sewer not relevant	Fresh water	Water box
Potable water available, no sewer or dump point	Waste capacity	Waste box
Shower trailers on a site with no water	Fresh water, fast	Water box first, waste box if the pump truck is far out
Restroom bank at trade peak, service twice weekly	Waste capacity	Waste box, or step service up
Office trailer compound with a bathroom and kitchenette, no utilities	Both	Combined water and waste box
Long drive to the nearest service truck	Whichever tank is smaller relative to use	Size the box to the longest realistic gap between visits

Shower trailers deserve their own sentence. On a crew-camp or remote-spread deployment, fresh water is the binding constraint, not waste. At a restricted flow of roughly 1.5 to 2.0 gallons per minute and a five-to-seven-minute shower, one shower draws something like 8 to 14 gallons. A 200-gallon onboard fresh tank covers perhaps 15 to 25 showers. If 100 people shower at end of shift, that is on the order of 1,000 gallons a day, which is five onboard fills of an 8 Station 2 Door before anyone has touched the waste side. Those are planning estimates, not metered figures, but they explain why a remote shower deployment is really a water-hauling job with a trailer attached. Our post on water and electricity needs for shower trailer rentals goes deeper on the supply side.

How a box stretches the service interval

The arithmetic is plain. Days between visits equals usable capacity divided by daily use. A box adds to the capacity side of that equation without changing the use side, so it moves the date a tank runs dry further out. On a plumbed site that date rarely matters. On a gravel pad an hour from the nearest yard, it decides how many trucks roll each week.

Take the 8 Station 2 Door example above. Without a water box, 1,000 gallons a day against a 200-gallon tank means a fill five times a day, which is not a realistic service plan. With bulk water on site, the trailer draws from the box and the box gets refilled on the scheduled visit. The waste side, at 970 gallons onboard, still fills in roughly a day at that use rate. So at that headcount you either add a waste box, step pump-out to daily, or both. The box does not remove the math. It lets you pick which constraint to pay for.

For restroom banks, the same logic runs on the waste side. An 8 Stall 8 Door restroom trailer carries 970 gallons of waste. When trade stacking pushes use past what that tank absorbs between twice-weekly visits, a waste box buys back the days without adding a third visit. Whether the box or the extra visit costs less depends on the distance, and that is a conversation worth having before the step-change add, not after the first overflow call.

How boxes show up on a quote

On a Stahla quote, water boxes and waste boxes sit in the equipment rental block as supporting units, listed after the primary trailers they serve. Their recurring work sits in the services block as separate named lines: water fill, waste pump-out, and clean/restock, each quoted per visit. That split is deliberate. Equipment subsidiaries and procurement teams read the recurring-services block first, because it is the part that repeats every 28-day billing period.

Three things are worth checking on any quote that includes support equipment:

• Minimum terms attach to every line. A water box or waste box carries the same commitment as the trailer it supports, so it does not come off in week two because a connection showed up early.
• Fill and pump-out frequency are stated separately. A shower site may need water more often than pump-out. If the quote bundles them, you cannot see which one you are paying for.
• Mobilization covers the box. Delivery, setup, connection, and demobilization of the box belong in the mobilization block, in job sequence, not buried in a monthly rate.

If a vendor quotes a remote shower setup with no water line at all, ask where the water is coming from. The answer is usually a surprise invoice later.

Placement: the pump truck has to reach it in month three

There are two access questions, and most site plans only answer the first. Can a truck deliver the box and set it next to the trailer? And can a service truck reach its fill and dump points every week for the life of the job? A box that sits perfectly on a dry pad in September can be behind a laydown yard, a stockpile, or a lake of mud by November.

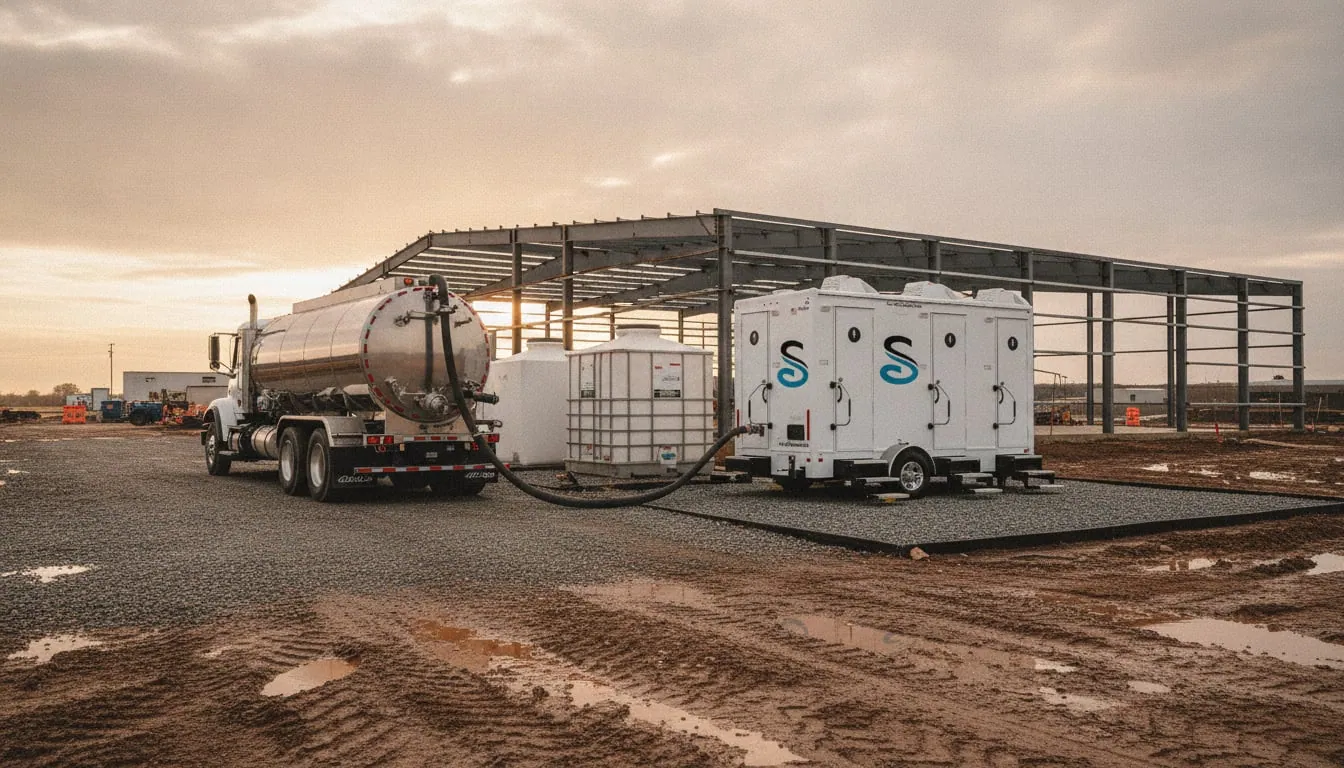

Vacuum trucks work on suction hose, and reach has limits. Industry guidance puts easy reach for most trucks around 50 to 100 feet, with 150 to 200 feet possible on some setups and performance dropping beyond that. Vertical lift and every bend in the hose eat into that. The practical rule: keep the service points of both boxes on the side facing a drivable route, within a short hose pull, and out of the path that material deliveries will take as the job grows.

A few more placement details that save service calls. Keep the box close to the trailer so supply and drain runs stay short, which also makes them easier to protect in winter. Set it on the same compacted pad as the trailer, level, and clear of equipment swing radius. Mark it on the site logistics plan so the next trade does not park a connex in front of it. When the job relocates, the box moves with the trailer on the same relocation move, and the placement check starts over.

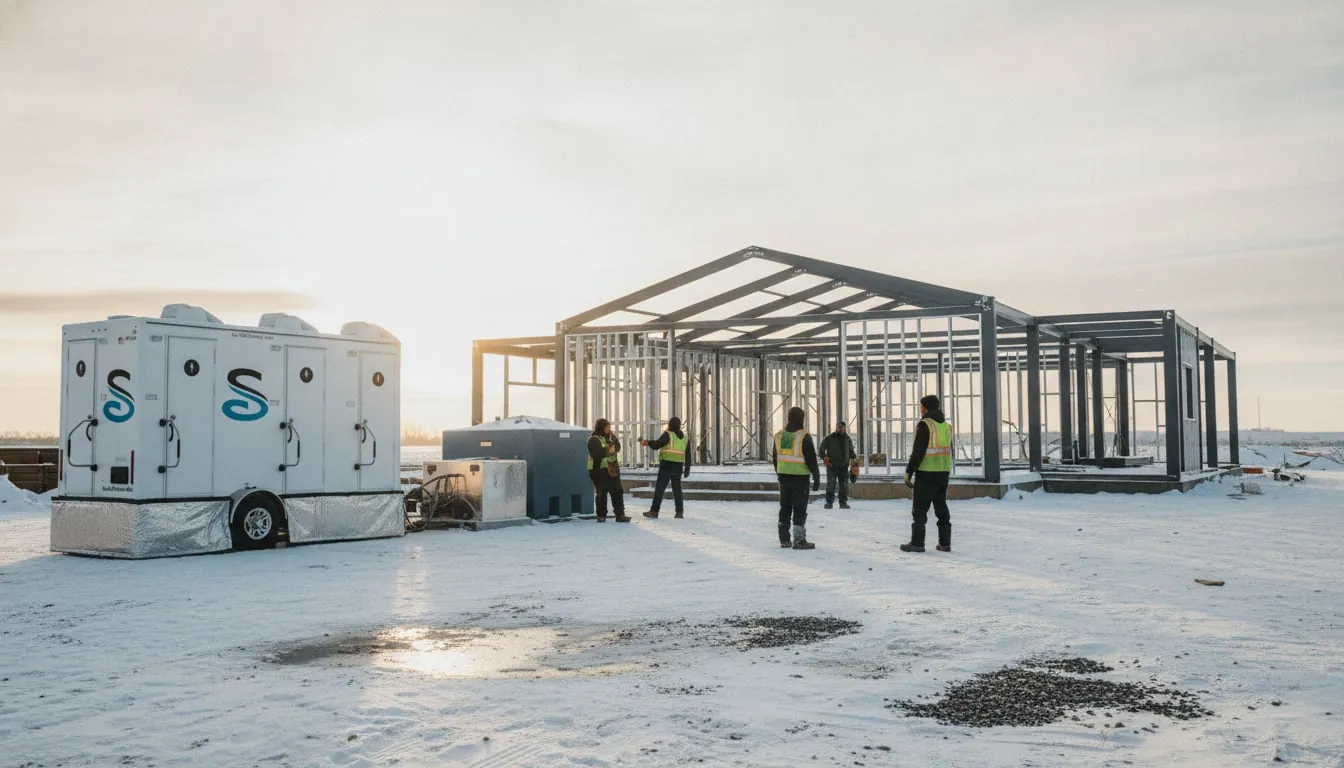

Freeze protection for boxes and connections

Cold weather does not attack the trailer interior first. It attacks the connection chain: the supply line from the water box, the drain line to the waste box, exposed fittings, and valves that sit in moving air overnight. A frozen supply line shuts every stall on the unit, and nobody finds out until the first crew arrives at 6 a.m.

The Mobile Water and Waste Box is insulated and heated as a unit. On the trailer side, heat trace on supply and drain lines and HeatLock, Stahla's freeze-protection skirting around the undercarriage, close off the space where cold air does its damage. Short, protected runs between box and trailer matter as much as the heat itself. Winter also raises the power draw, so the number of 20A/120V circuits a trailer needs goes up in cold months, and power to the heating has to stay on overnight. Cutting it to save fuel is the most common way to freeze a line.

For a working example, the Kansas City distribution-center build ran a combined water and waste box beside two HeatLock-equipped 2 Stall trailers on a site with no sewer or water through winter. The Montgomery County decon remediation job shows the same support stack behind a decontamination trailer on restricted land, with daily weekday water fills.

Frequently asked questions

What is the difference between a water box and a waste box?

A water box supplies potable fresh water to the trailer, and a waste box holds drain water and waste beyond the trailer's onboard tank. Some sites need one, some need both, and office compounds often use a combined unit that does both jobs.

Does a restroom trailer need a water box if the site has a hose connection?

Usually not, if the connection is potable and within about 100 feet. The trailer can draw from it directly, and a waste box or scheduled pump-out handles the other side.

How big are Stahla's water and waste boxes?

The combined Mobile Water and Waste Box holds 270 gallons of fresh water and 330 gallons of waste. Boxes serving restroom and shower trailers are sized on the quote against the model, headcount, and service distance.

Do shower trailers always need a water box?

On a site without a water connection, almost always. A shower trailer uses fresh water far faster than it fills its waste tank, so the 8 Station 2 Door empties its 200-gallon fresh tank about five times per pump-out.

How often do water boxes and waste boxes get serviced?

On the same scheduled visits as the trailers, weekly to daily depending on headcount, with water fill and pump-out quoted as separate lines. Shower sites often need water fills more often than pump-outs.

Can water and waste boxes run through winter?

Yes, when the box is insulated and heated, the runs are short and protected, and the trailer has HeatLock and heat trace with power left on overnight. The weak point is the connection chain, not the box.

Where should the boxes be placed on site?

Beside the trailer on the same level pad, with fill and dump points facing a drivable route within easy hose reach. Plan for where the laydown yard and stockpiles will be in month three, not just on delivery day.

Sizing it for your site

The useful inputs are short: which trailer models, peak headcount, whether showers are involved, what utilities exist or are coming, and how far the site sits from service. With those, the box sizes and the fill and pump-out cadence fall out of the numbers above. Send them through the quote form and we will return a configuration with each line itemized, or get in touch if you would rather talk the site layout through first.
