Remote Construction Site Facilities: No Water, No Sewer, No Power

A site with no water, no sewer, and no power can still run real restroom and shower facilities. Off-grid does not mean going back to a row of plastic units. It means the support equipment becomes part of the facility: a water box supplies, a waste box holds, a generator powers, and a scheduled service loop keeps all three from running out. The only thing that genuinely changes is that your service interval stops being a habit and becomes arithmetic. Tank capacity divided by daily consumption gives you the number of days, and nothing about being remote changes that math.

That is the useful frame for remote construction site facilities. A gravel pad forty minutes past the last hydrant is not a limitation on what you can put there. It is a limitation on how long the equipment can run unattended, and that number is knowable before you sign anything. What follows is the whole chain: supply, holding, power, cold weather, the service loop, and the decisions to make before the delivery truck leaves the yard.

What "no utilities" actually changes, and what it does not

Utilities do two things for a trailer: they push clean water in and they take dirty water away, continuously and invisibly. Remove them and the trailer itself is unchanged. An 8 Stall 8 Door restroom trailer has the same individual-door layout, the same fixtures, and the same climate control whether it is plumbed to a city main or fed from a box on the pad next to it. What changes is that supply and holding become finite, visible, and yours to schedule.

So the question a superintendent should ask is not "can we put trailers out there." It is "how many days of capacity does this configuration buy me, and who is driving out to reset the clock." Everything below is in service of answering that. Two variables predict the cost and the headache: how long the site runs, and how far it sits from a service shop.

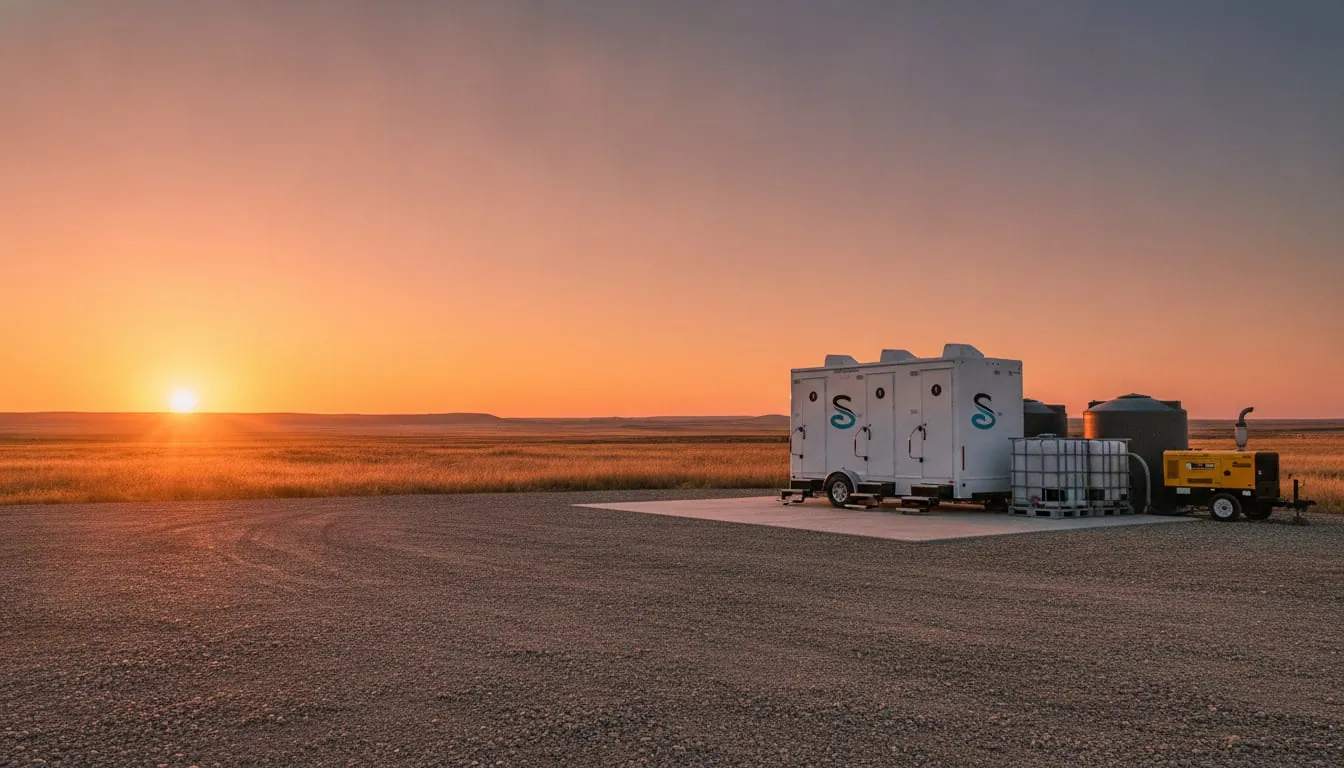

The water box and the waste box turn a gravel pad into a complex

The two pieces that make an off-grid setup work are the mobile water box and waste box. The water box is bulk fresh water supply that feeds the trailer the way a hydrant connection would. The waste box is bulk holding that extends the trailer's onboard waste capacity so a pump truck is not making trips it does not need to make. Together they decouple the trailer from the utility grid without changing anything about how the trailer works for the crew walking into it.

They are supply and holding infrastructure, not accessories. On a site with no connections at all, they are the reason a pad supports an individual-door restroom trailer instead of a bank of units nobody wants to use in month three.

Sizing them is the conversation. The onboard numbers are fixed by model, and they are the starting point for every calculation that follows:

Model	Fresh water	Waste capacity	Layout
4 Stall 4 Door	200 gal	440 gal	Individual door
8 Stall 8 Door	300 gal	970 gal	Individual door
10 Stall 7 Door	400 gal (two 200 gal)	970 gal	Individual door
8 Stall 2 Door	200 gal	750 gal	Communal
8 Station 2 Door Shower	200 gal	970 gal	Communal
8 Station 8 Door Shower	300 gal	970 gal	Individual door

Read that table as ratios, not just capacities. The 8 Station 2 Door Shower carries 200 gallons of fresh against 970 of waste, so the fresh side empties roughly five times before the waste side is full. The 8 Station 8 Door Shower carries 300 against the same 970, about 3.2 refills. That difference is exactly why a water box changes the economics of a remote shower setup more than it changes a remote restroom setup: showers consume fresh water fast, and without bulk supply you are paying someone to drive water out four or five times per pump-out.

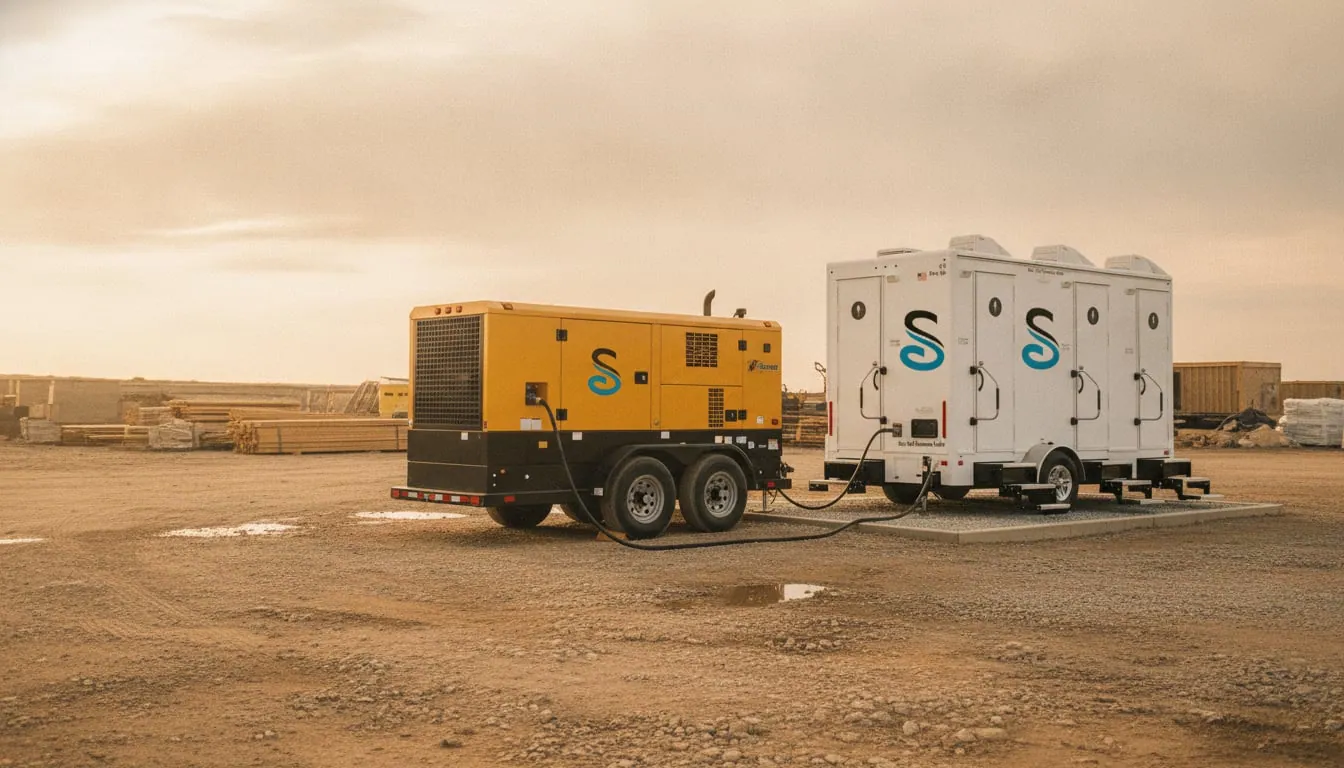

Generators: size to the actual load, not to the nameplate

Off-grid power is where most plans go wrong, and they go wrong in the same direction every time. Somebody sees trailers and assumes heavy electrical service. Our units do not need it. Power is multiple standard 20A/120V cords, and the count shifts between summer and winter operation because the cold-weather systems draw.

Here is what that means in practice. An 8 Stall 8 Door restroom trailer runs on three 20A circuits in summer and five in winter. A 4 Stall 4 Door runs on one in summer and three in winter. A laundry trailer runs four. Add those up honestly for your actual configuration and you land on a modest number, usually far below what gets ordered.

Oversizing is not harmless. A diesel generator wants to run at or above roughly 30 to 35 percent of its rated load. Run it lighter than that for weeks and you get wet-stacking: unburned fuel accumulating in the exhaust, glazed cylinder walls, fouled injectors, a smoking unit and a service bill. The 100 kW set brought in "to be safe" for a load that never exceeds 8 kW is the single most common off-grid mistake on a jobsite, and it costs real money on the back end.

Fueling is the other half. Decide, in writing, who refuels and on what cadence, and make sure that person is on the site's actual schedule and not a general assumption. A generator has a runtime, the runtime is shorter in winter, and nobody notices a fuel gauge on a Friday afternoon. Our post on pull-behind generators for restroom and shower trailers covers the sizing and connection detail in full.

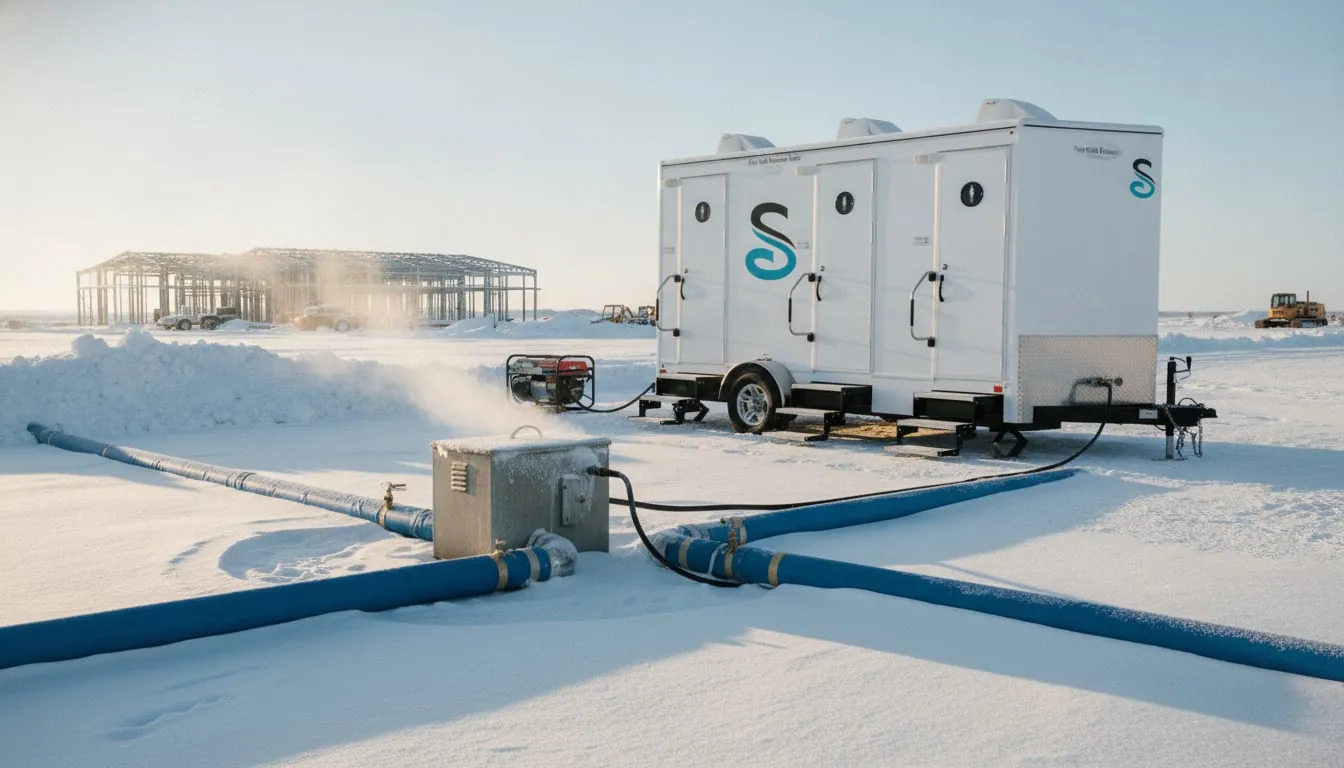

Cold weather off-grid: heat trace, enclosures, and HeatLock

Winter is where an off-grid site either holds or fails, because every vulnerable point is outdoors and unheated. The freeze risk is not the trailer interior, which is climate controlled. It is the connection chain: the supply line from the water box, the waste line to the waste box, exposed fittings, and any run that sits in standing air overnight.

Heat trace on the lines, insulated and enclosed connections, and a heated interior that never gets shut off are the baseline. The system we build to is HeatLock, which handles the freeze-protection chain as a designed system instead of a field improvisation with foam and tape. It matters more off-grid than on, because there is no building nearby to borrow heat from and no one walking past at 5 a.m. to notice a line that stopped moving.

The operational rule in winter is simple and it gets broken constantly: do not cut power to save fuel overnight. Cold-weather draw is exactly why the winter circuit counts in the table above are higher. A generator shut down at 6 p.m. on a 10-degree night is a frozen line by morning and a service call that costs more than the diesel saved. Our write-up on winter-proofing restroom and shower trailers on a jobsite goes through the full cold sequence, and the Ellendale data center project is the North Dakota version of it running in January.

The service loop is what actually sustains the site

On a plumbed site, service cadence is a habit. Twice weekly, because that is what everybody does. Off-grid, cadence is a calculation, and treating it as a habit is how a site runs dry on a Tuesday.

The calculation: usable capacity divided by daily consumption equals days between visits. Waste capacity sets the pump-out interval. Fresh capacity, minus whatever the water box adds, sets the fill interval. Whichever comes first is your service interval, and on most remote sites it is the fresh side unless a water box is in place.

Configuration	Onboard fresh	Onboard waste	Fresh refills per pump-out	What sets the interval
8 Stall 8 Door restroom	300 gal	970 gal	About 3.2	Fresh fill, unless a water box is added
10 Stall 7 Door restroom	400 gal (two 200 gal)	970 gal	About 2.4	Balanced; pump-out on heavy headcount
8 Station 2 Door shower	200 gal	970 gal	About 5	Fresh fill, decisively
8 Station 8 Door shower	300 gal	970 gal	About 3.2	Fresh fill
4 Stall 4 Door restroom	200 gal	440 gal	About 2.2	Balanced on small crews

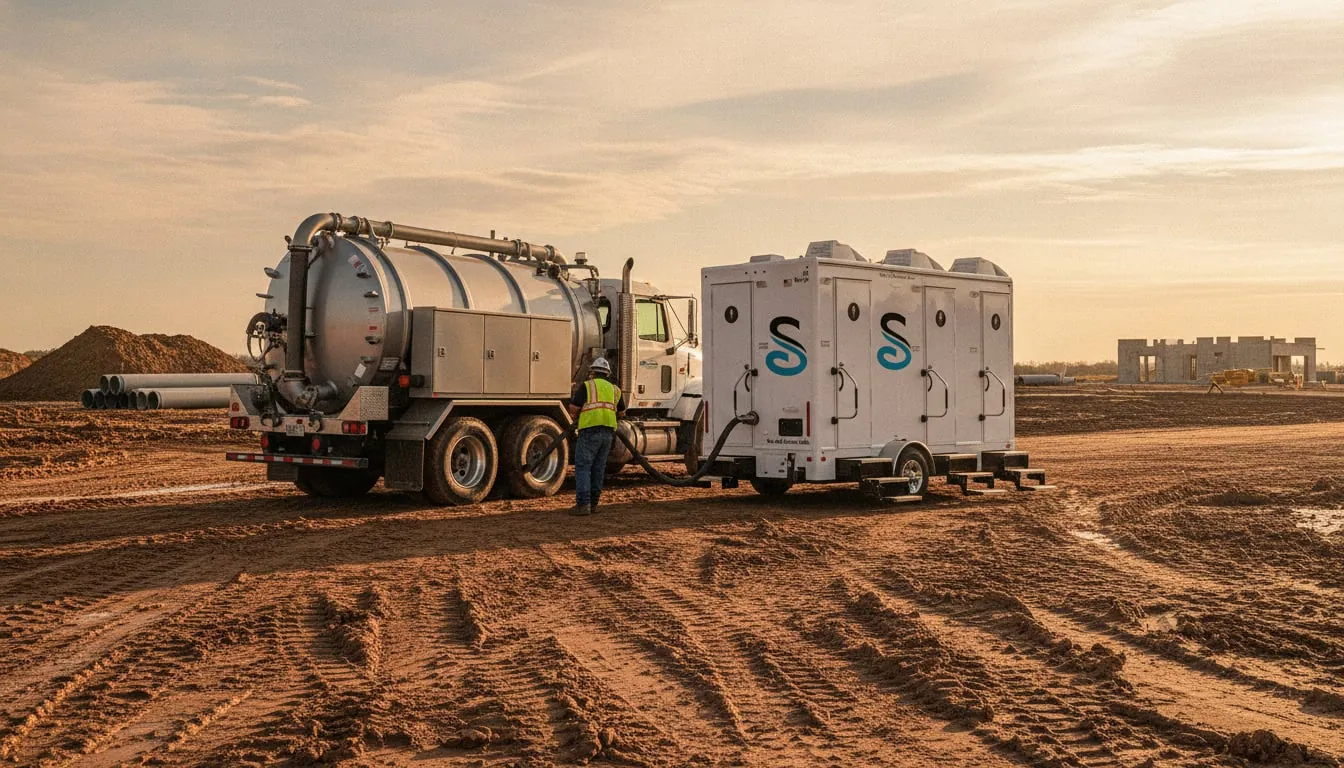

What a visit consists of does not change because the site is remote: pump-out, fresh-water fill, clean and restock, plus a look at the lines and the power connection. What changes is that the drive is long, so the visit has to be complete every time. A partial visit on a remote site is a second trip, and the second trip is the expensive one. We break the whole sequence down in what happens on a restroom trailer service visit.

Build the interval from the headcount curve, not from an average. A site that runs 40 workers through mobilization and 180 at trade peak does not have one service cadence. It has a cadence per phase, and the schedule should step with the phase rather than being renegotiated in a panic the week the crew doubles. A 28-day billing period that includes a defined number of visits is easier to phase than an ad hoc arrangement.

Decide these before the truck leaves the yard

Almost every off-grid problem traces back to a decision that was never made, not to equipment that failed. Four of them matter more than the rest.

Decision	What to confirm	Failure mode if skipped
Access	Turning radius and surface for the delivery truck and the weekly pump truck, loaded	Trailer delivered, then unreachable for service in month three
Ground	Compacted, drained, level pad; no soft shoulder, no low spot	Unit settles, lines pull, pad becomes a mud hole in spring
Placement	Walking distance from the work face, away from the laydown yard traffic lane	Crews stop using it; trade stacking around the entrance
Potable water plan	Who hauls, at what cadence, from where, in what container	Site runs dry mid-shift with nobody assigned

Access is the one people underestimate. The delivery truck arrives once, often in good weather. The pump truck arrives every week for a year, including in March when the frost leaves the ground. A route that is fine for delivery and marginal for service will fail, and at the worst time. Our construction site logistics plan covers placement and routing in more depth.

The hard parts, named

Three things go wrong on remote sites often enough to plan around.

• The two-track road that softens in spring. It carried everything through winter on frozen ground, then thaws and stops carrying a loaded service truck. Plan for a rock lift on the last quarter mile, or plan for a relocation move to a pad the truck can reach year round.
• The generator nobody refuels over a holiday weekend. Four days unattended, power out, then a frozen supply line and a cold trailer waiting for the crew on Tuesday. Name the person and the cadence, and put fuel in the same service window as the pump-out if that is what it takes.
• Distance from a service shop as the real cost driver. It is not the trailer that makes a remote site cost more, it is the windshield time on every visit for the length of the project. Ask where the servicing shop is before you compare quotes.

None of these are reasons to accept lesser facilities on a remote site. They are reasons to answer the questions before mobilization instead of during. The same chain shows up on solar farm construction and on wind farm pads spread across miles, and the Denver EPC construction project ran clean because access and service were settled in planning.

Frequently asked questions

Can a restroom trailer run with no water, sewer, or power hookup at all?

Yes. It runs on onboard fresh water, onboard waste holding, and a generator, and a water box and waste box extend all of that. The trailer works identically to a plumbed one. The only difference is that you schedule supply and holding instead of the utility doing it invisibly.

How often does an off-grid restroom trailer need service?

Divide usable capacity by daily consumption. An 8 Stall 8 Door carries 300 gallons fresh and 970 waste, so the fresh side sets the interval unless a water box is added. On most remote sites the answer lands between twice weekly and weekly, and it steps with the headcount curve as phases change.

What size generator does a restroom trailer need?

Far less than most people order. Power is multiple standard 20A/120V cords, not a heavy service. An 8 Stall 8 Door takes three circuits in summer and five in winter; a 4 Stall 4 Door takes one and three. Size to that actual load and keep the set above 30 to 35 percent of rated capacity to avoid wet-stacking.

What is the difference between a water box and a waste box?

The water box is bulk fresh water supply feeding the trailer; the waste box is bulk holding that extends onboard waste capacity. On an off-grid site they do the job a hydrant and a sewer lateral would do, and together they stretch the interval between service visits.

Do these setups work in winter?

Yes, with heat trace on the lines, insulated and enclosed connections, and power that never gets shut off overnight. HeatLock is the system we build to for cold-weather operation. The failure mode in winter is almost always a power interruption, not a hardware failure.

Who is responsible for hauling water and fuel?

Settle it in writing before delivery. Fresh-water fill is part of the scheduled service visit; between-visit hauling and generator fuel are site responsibilities unless arranged otherwise. The most common off-grid failure is an unassigned task, not a missing capability.

How far out can you actually service a site?

We deliver nationwide, from shops in Nebraska, Kansas City, and Denver plus vetted partners, so distance is a scheduling and cost question rather than a yes-or-no question. Tell us where the pad is and we will tell you what the recurring service looks like from the nearest shop.

Starting from the pad

If you are looking at a gravel pad with nothing running to it, bring three numbers to the conversation: peak headcount, how many months the site runs, and the distance from the nearest town with a service shop. Those three set the configuration, the water box and waste box sizing, and the service cadence.

We work remote construction sites regularly, including ones where the facilities arrived before the road did. If you want the arithmetic run on your site rather than a generic answer, send us the pad location and the headcount curve through a quote request or get in touch, and we will come back with capacity, circuit counts, and an interval you can put in the schedule.
